Products & Solutions
Authentic industrial field gateways and routers, SMS alerting servers, Niagara 4 and Schneider EcoStruxure graphic engineering, and turnkey BMS/EMS integrations.

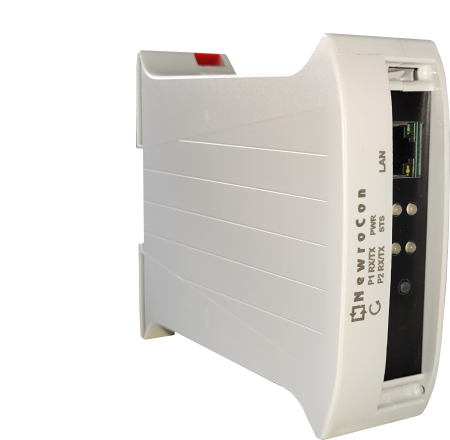

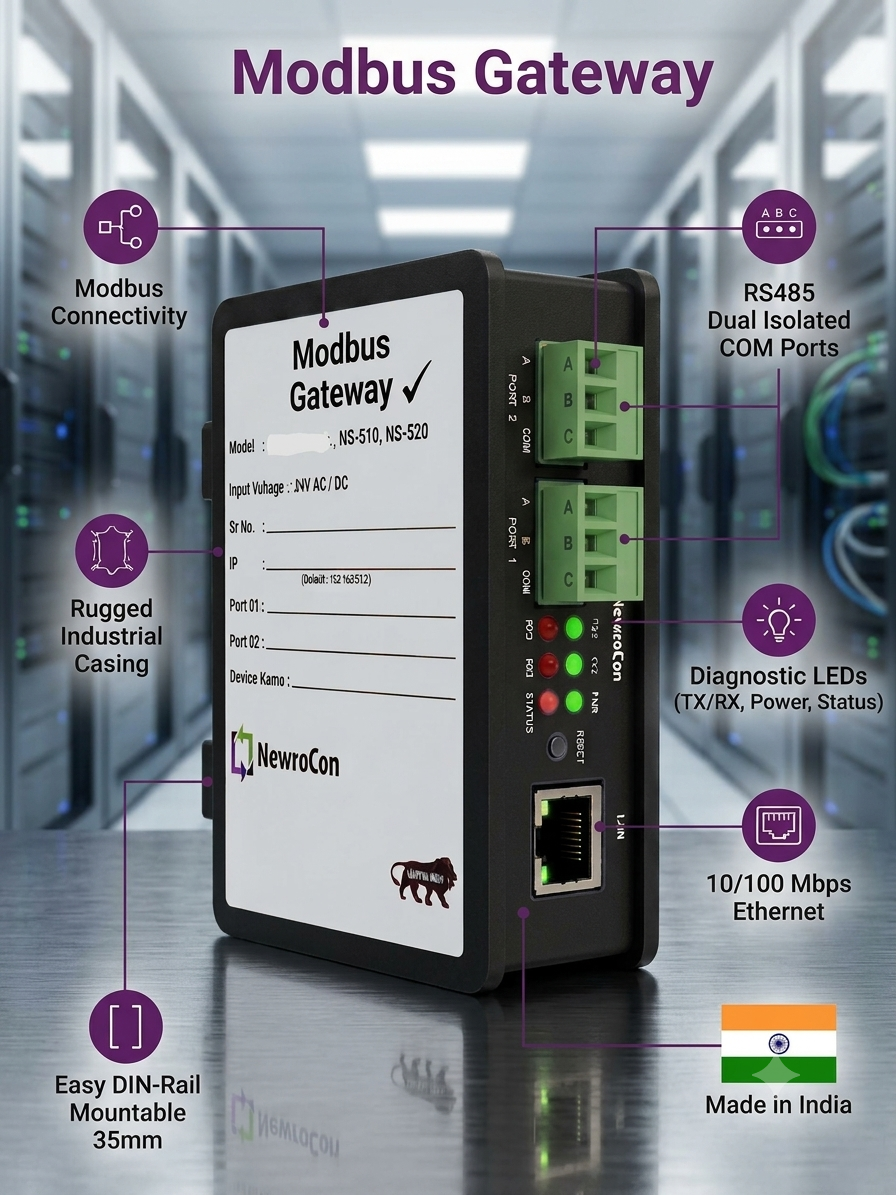

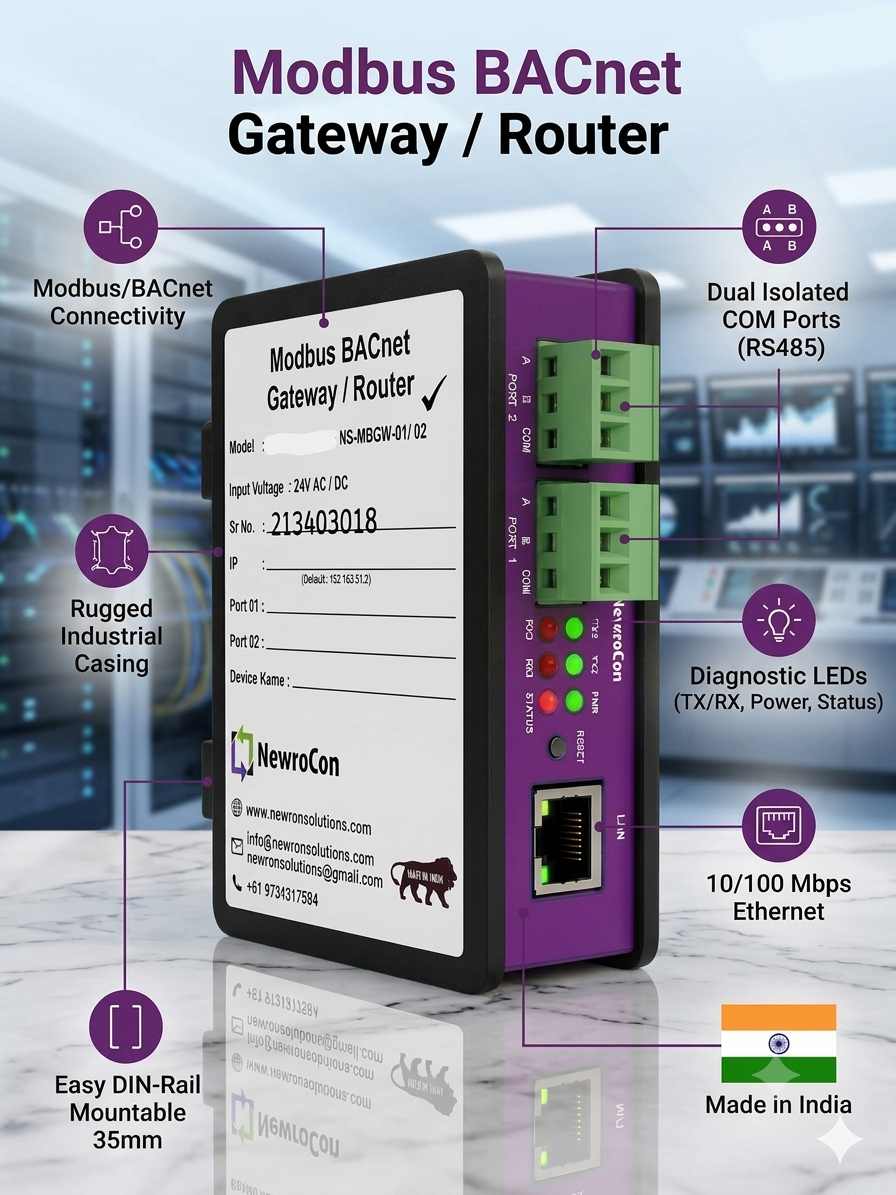

NewroCon Gateway & Router Series
NewroCon is an industrial-grade communication gateway and router designed for seamless interoperability across diverse building automation protocols. It enables smooth data translation between field devices and central BMS supervisors with galvanic isolation, robust DIN-rail mounting, and straightforward configuration.
| Model | Application Description | RS-485 Ports | Datasheet |
|---|---|---|---|
| NS-MBGW-001 | Gateway / Router | ONE | |
| NS-MBGW-002 | Gateway / Router | TWO | |
| NS-510 | Modbus Router (RTU to IP) | ONE | |
| NS-520 | Modbus Router (RTU to IP) | TWO | |

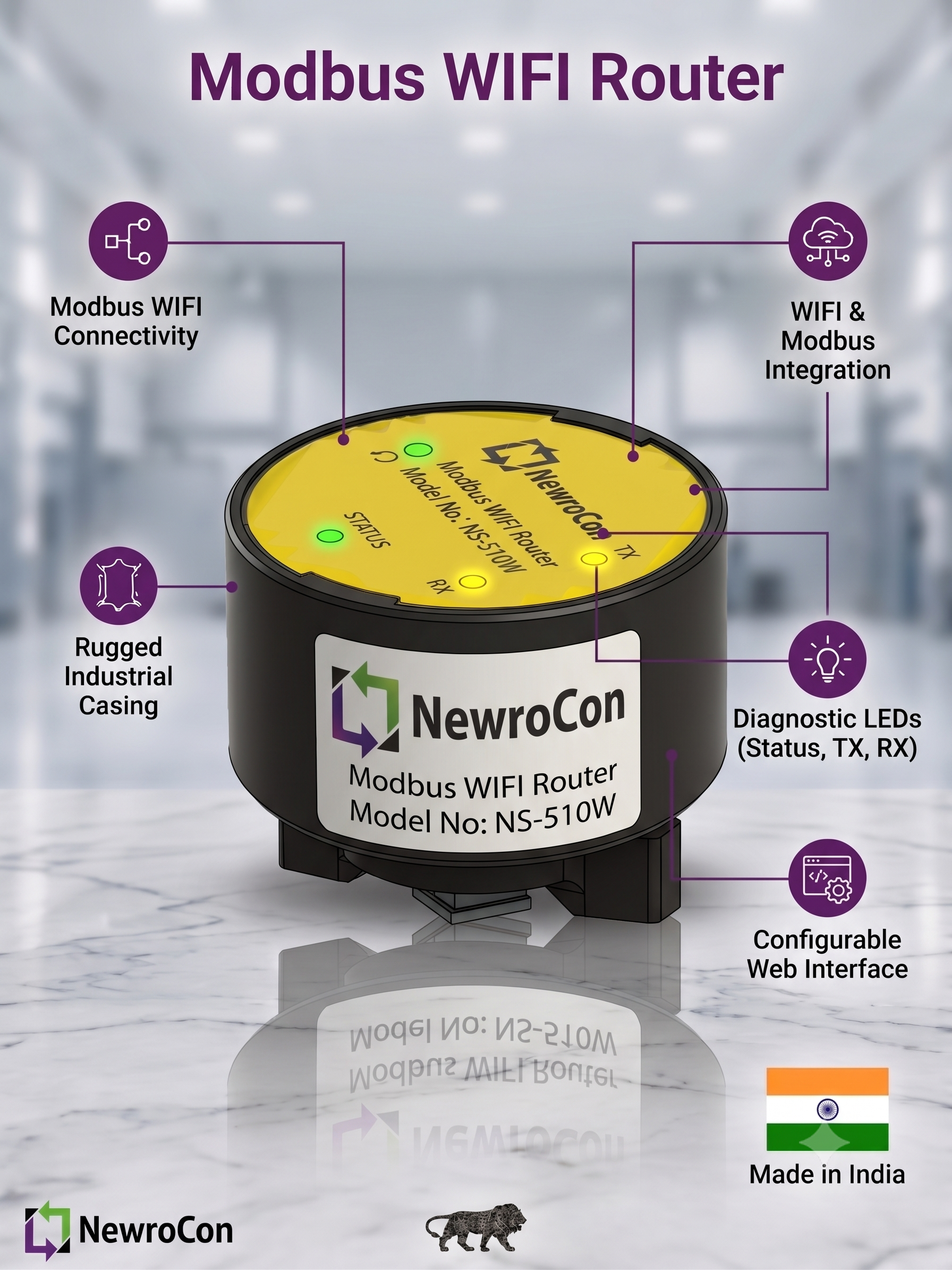

| NS-510W | Modbus Router (RTU to IP-WIFI) | ONE |
BACnet MSTP to Modbus IP / BACnet MSTP to BACnet IP
Modbus IP to BACnet IP / BACnet IP to Modbus IP
BACnet MSTP to BACnet IP Routing
24V AC/DC operational power supply, standard 35mm DIN-rail industrial enclosure.
Embedded web server for browser-based parameter configuration and diagnostics without special software.
Optically isolated serial ports safeguarding supervisory automation networks against field transients.

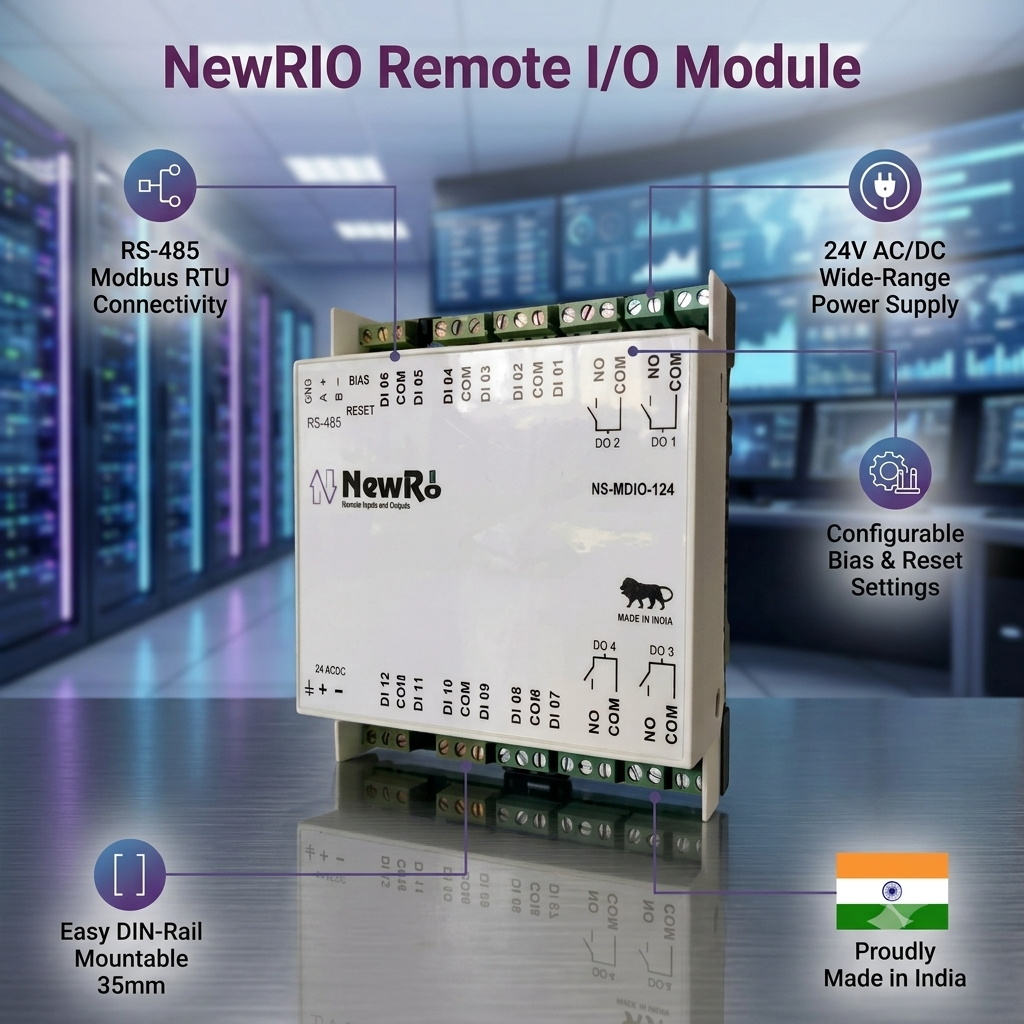

NewRIO - Remote IO Module
Remote I/O Modules provide a reliable interface for monitoring field status and alarm points and controlling equipment in Building Management System (BMS) applications. Designed for distributed I/O applications, the modules support digital and analog field signals with isolated RS485 communication.
- check Multiple Digital & Analog I/O configurations
- check Suitable for equipment status and alarm monitoring
- check Relay outputs for equipment control
- check 2-wire, 3 kV isolated RS485 communication
- check Multiple selectable baud rates up to 115200
- check 24 VDC / 24 VAC power supply
| Model | Analog Inputs | Analog Outputs | Digital Inputs | Digital Outputs |
|---|---|---|---|---|
| NS-MDI-16 | NA | NA | 16 | NA |
| NS-MDO-12 | NA | NA | NA | 12 |
| NS-MDIO-24 | NA | NA | 12 | 04 |
| NS-MUI-16 | 16 | NA | NA | NA |

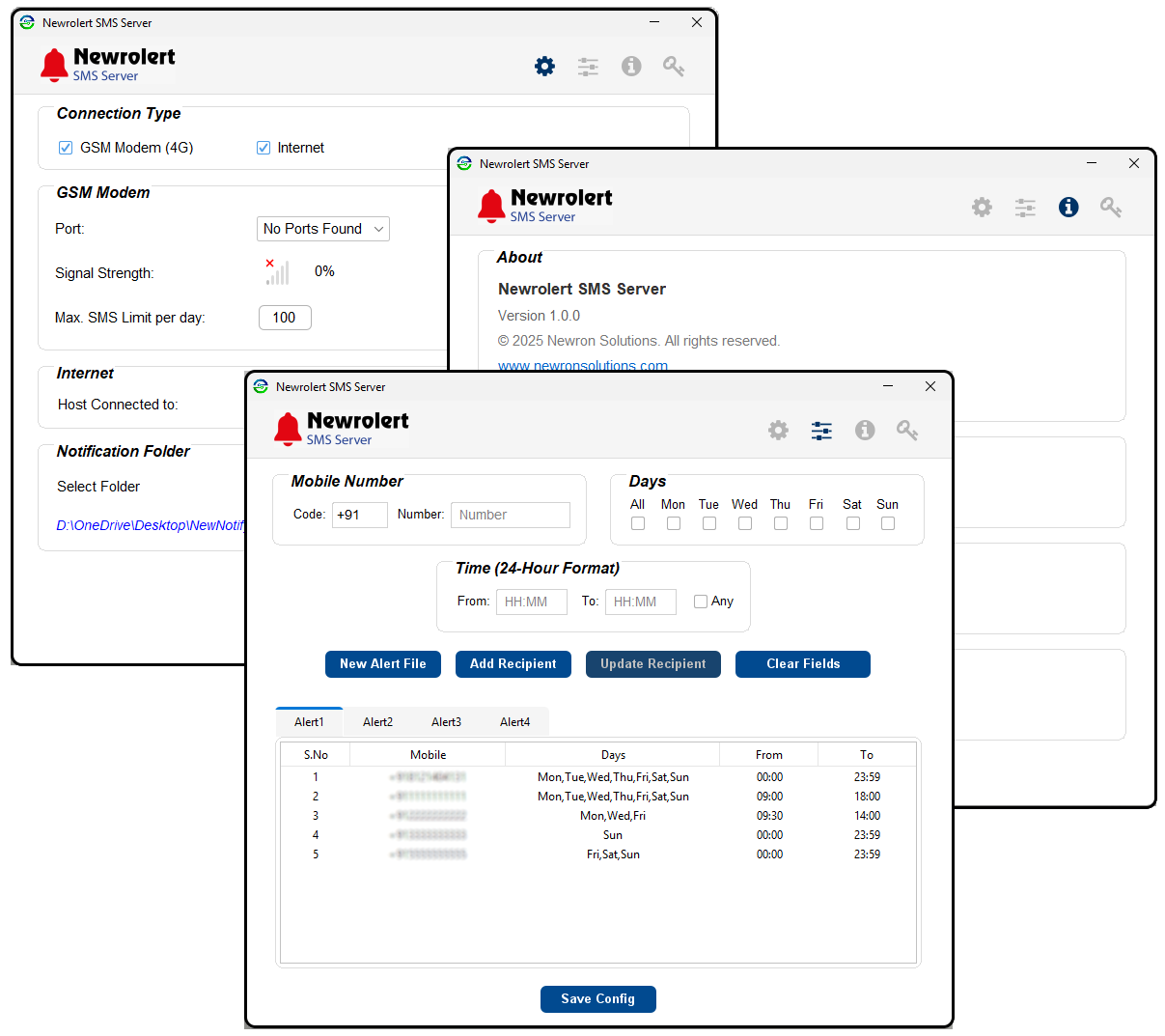

Newrolert SMS Server
Newrolert is an automated alarm dispatch and notification management software designed for Building Management and critical infrastructure monitoring. It communicates through GSM/Internet to deliver critical event alerts to designated engineers, duty operators, and maintenance teams.
- Supported OS: Windows 10, 11 / Windows Server
- Processor: 1.0 GHz or higher x86/x64
- RAM: Minimum 4 GB RAM
- Interface: 1x USB or Serial RS-232 Port for Modem
Obtain the official Newrolert Technical Document.

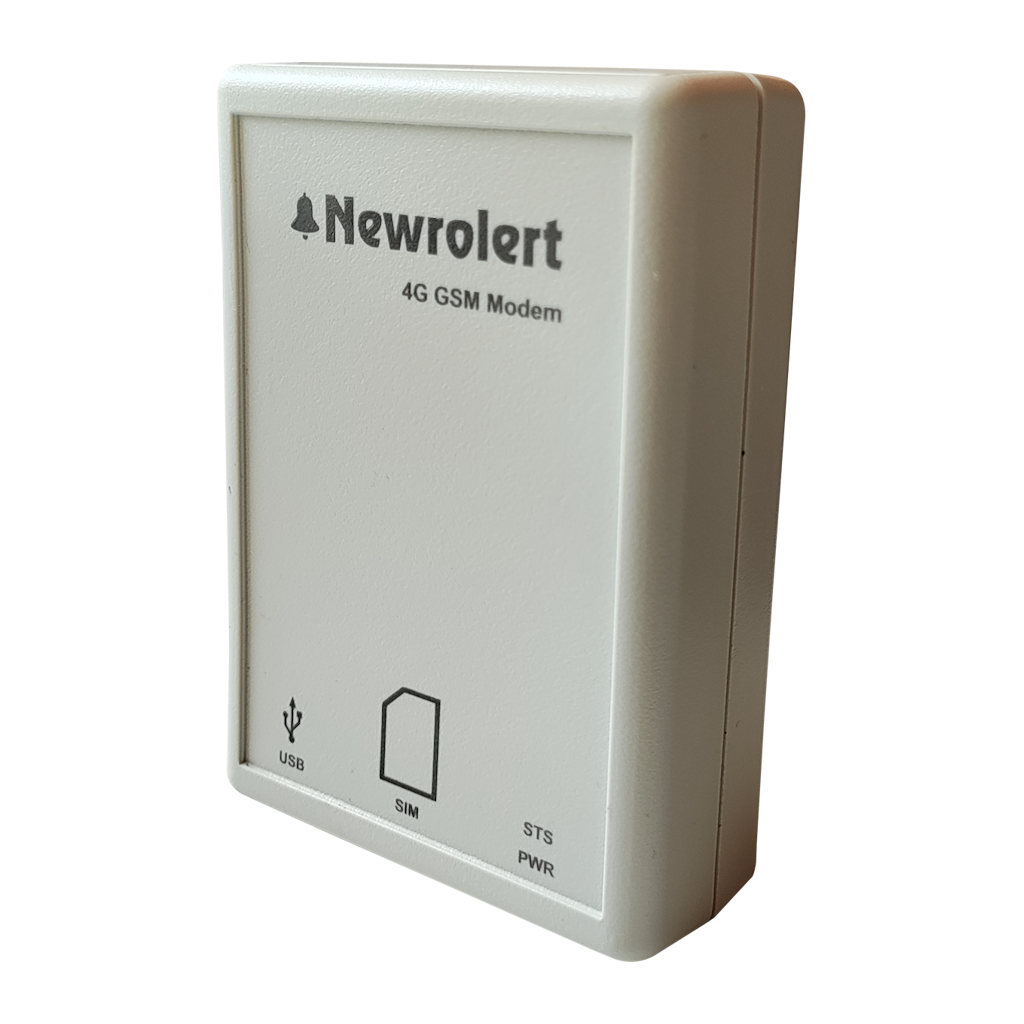

Newrolert - 4G GSM Modem
LTE 4G industrial modem, powered and interfaced exclusively via USB. It supports nano SIM cards for mobile connectivity and is housed in a rugged ABS plastic enclosure, making it suitable for portable and field use.
- check Exclusive USB Interface for both data communication and power
- check Supports LTE Cat 1 (FDD/TDD), GSM/GPRS networks
- check Nano SIM card compatible for integrated mobile data connectivity
- check Compact, handheld ABS plastic enclosure
- check Supports Plug-and-Play
3D HVAC Visualization
Detailed 3D visualization of HVAC systems and building spaces for intuitive BMS monitoring and operational awareness. The visualization includes 3D floor layouts with VAV heat mapping, detailed HVAC equipment representation, and clear spatial views of building systems, enabling operators to understand equipment locations, zone conditions, and system performance through an immersive graphical interface.

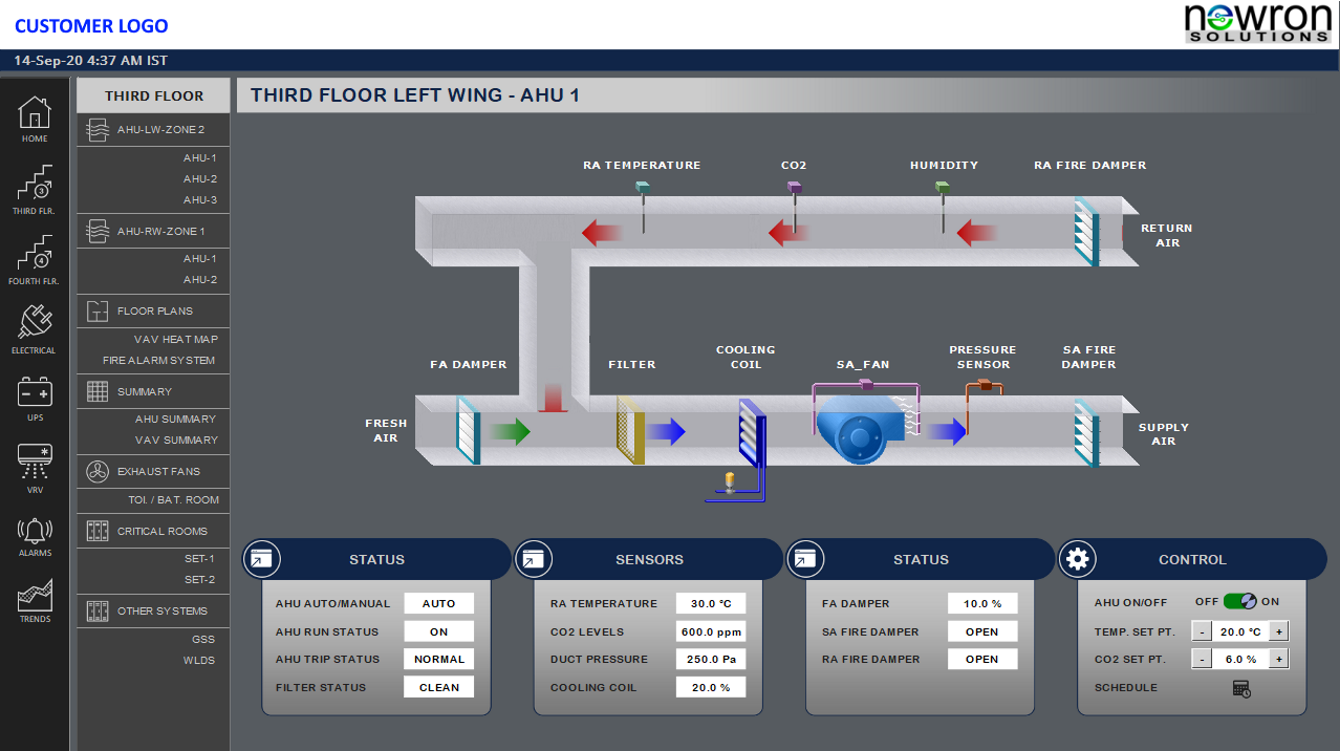

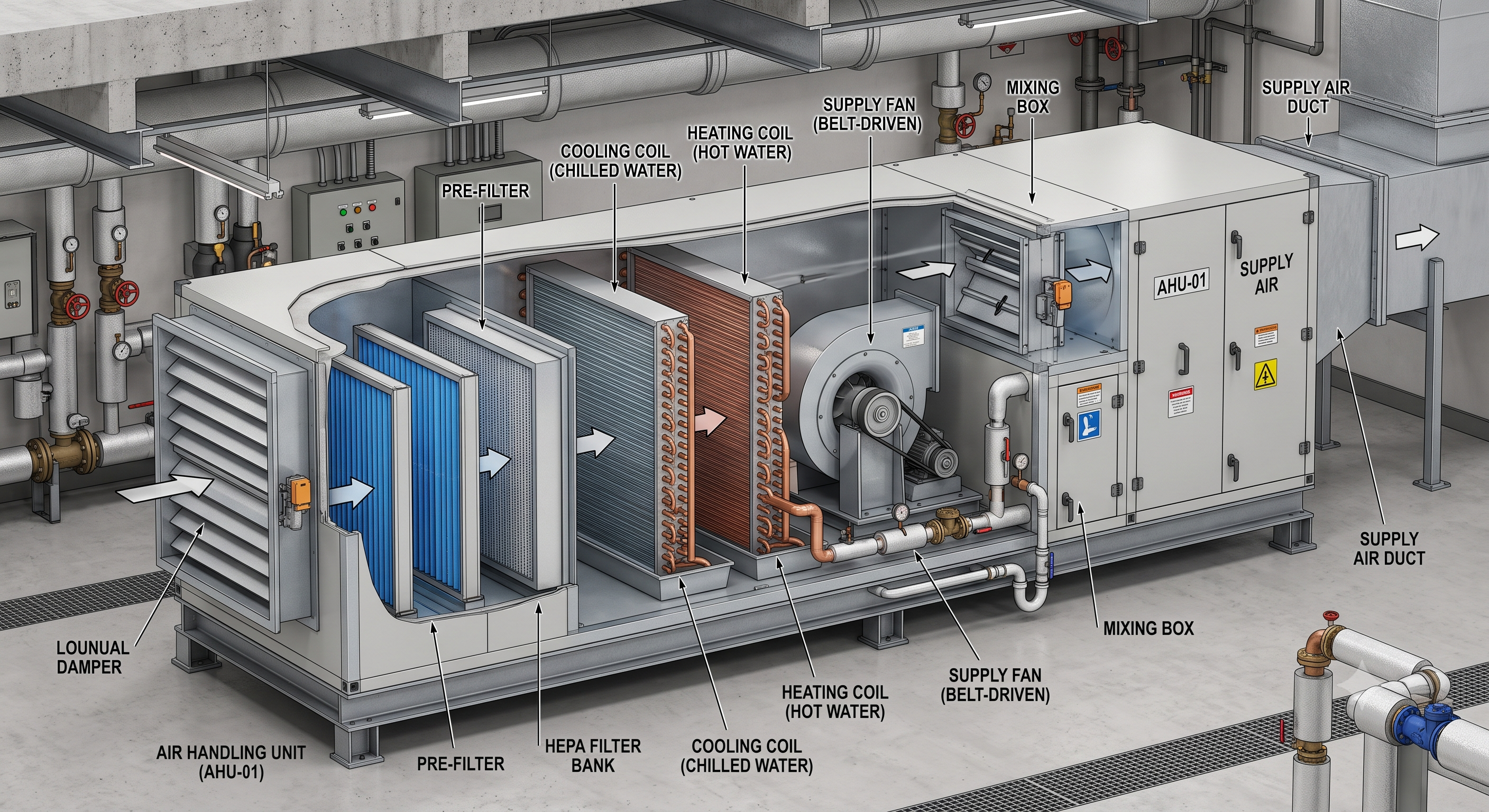

AHU
Air Handling Unit

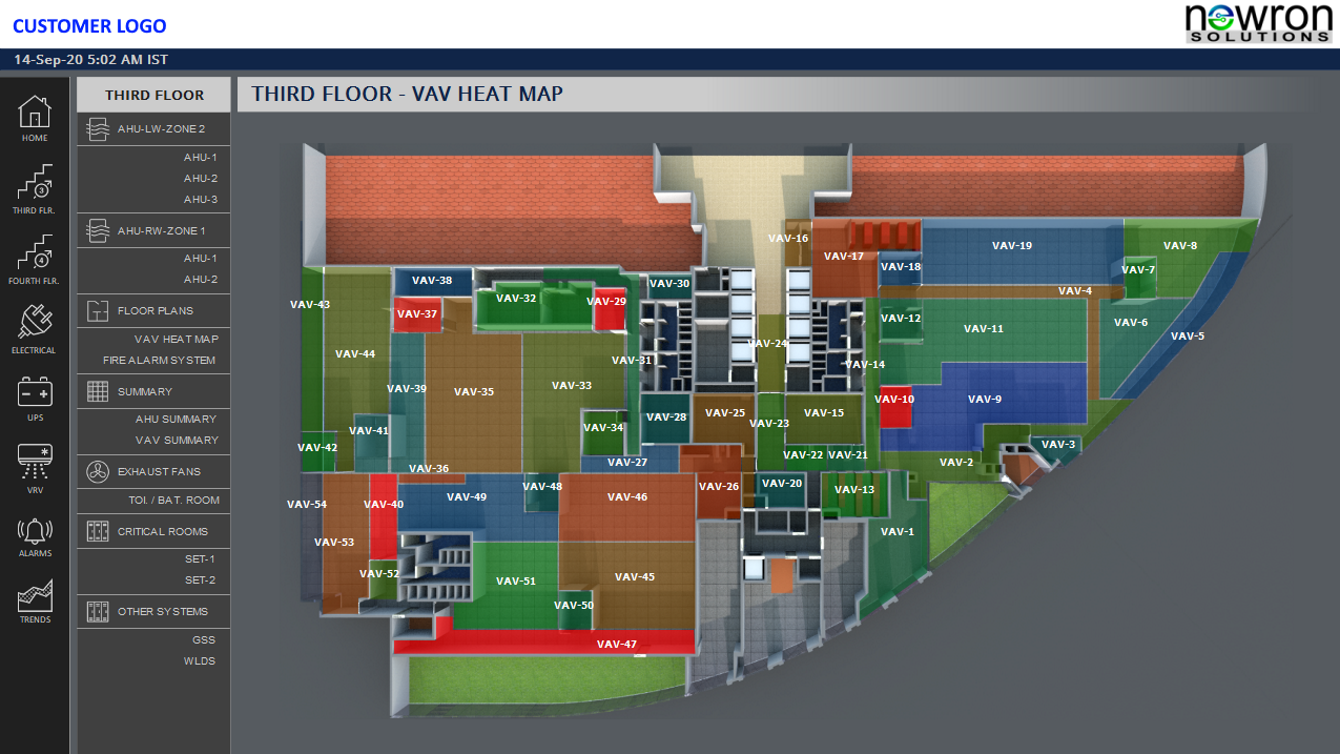

Floor Plan
Floor Plan

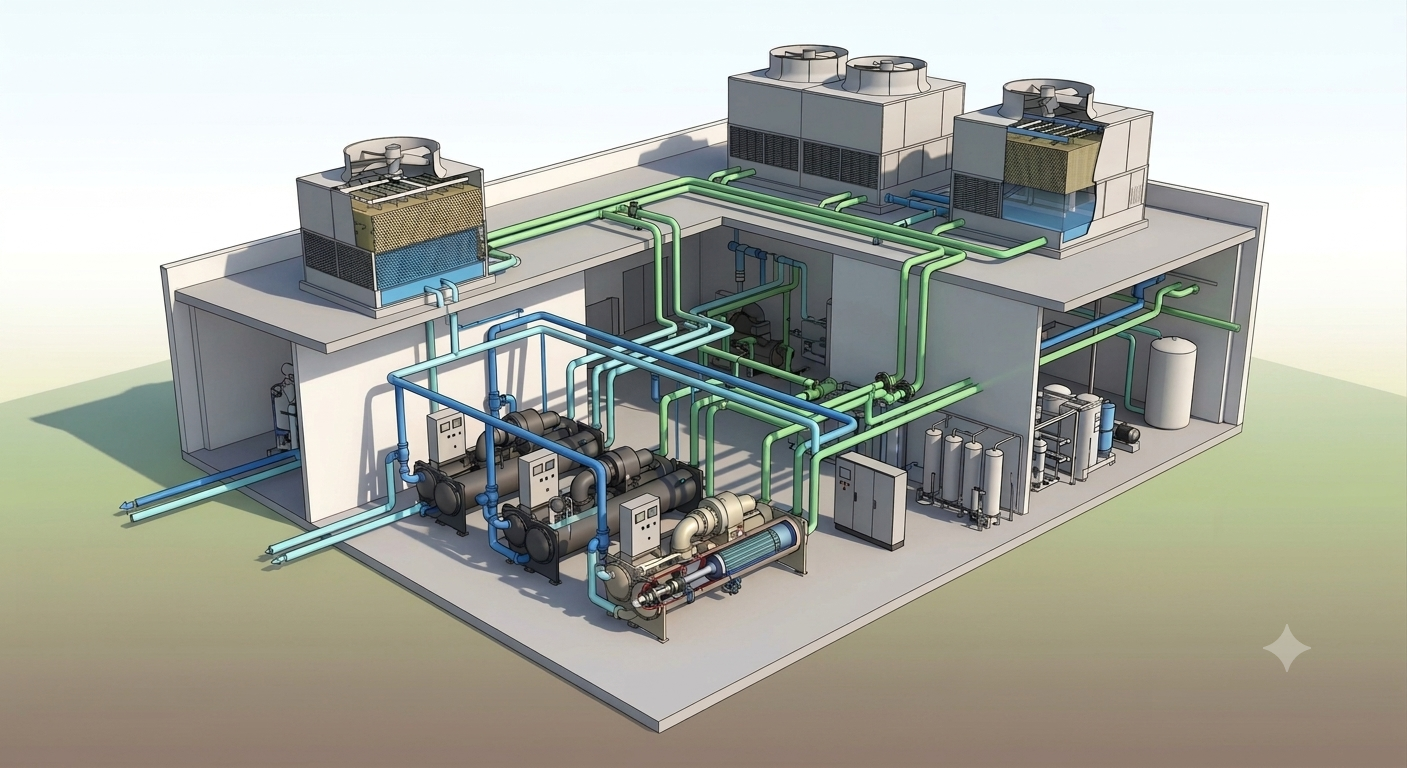

CPM Plant
Chiller Plant

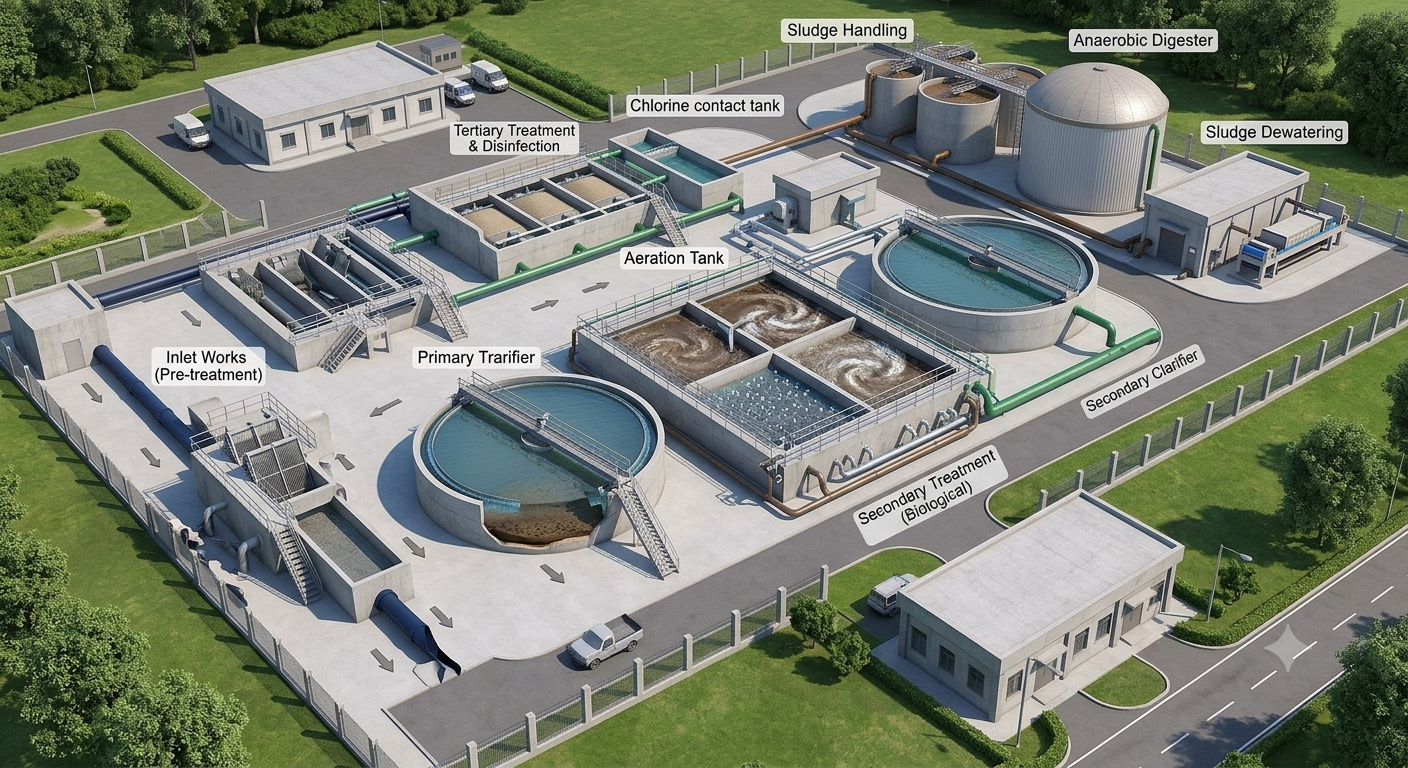

STP
Sewage Treatment Plant

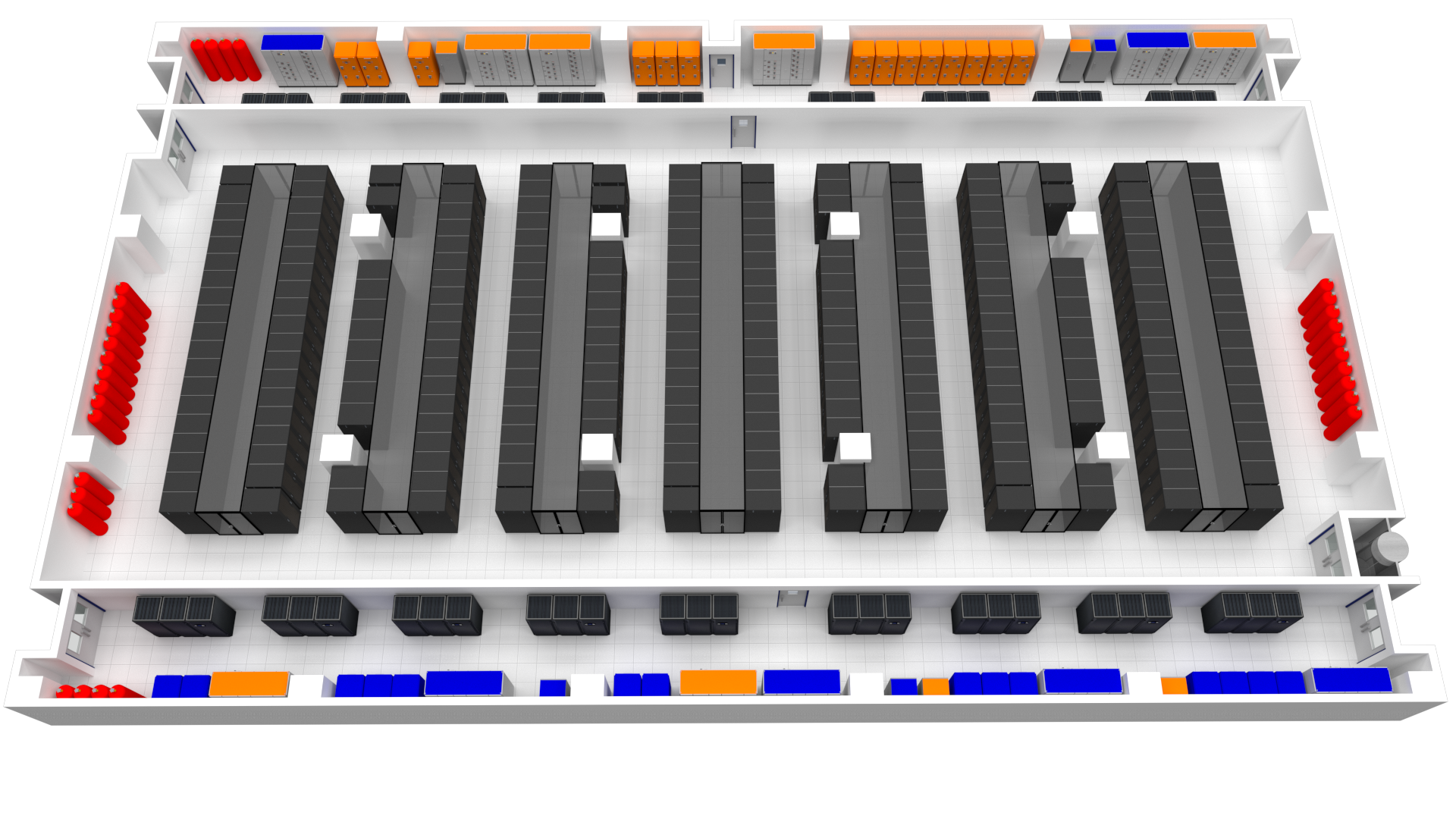

Server Room
Server Room / Data Center
Site Overview
Site Overview

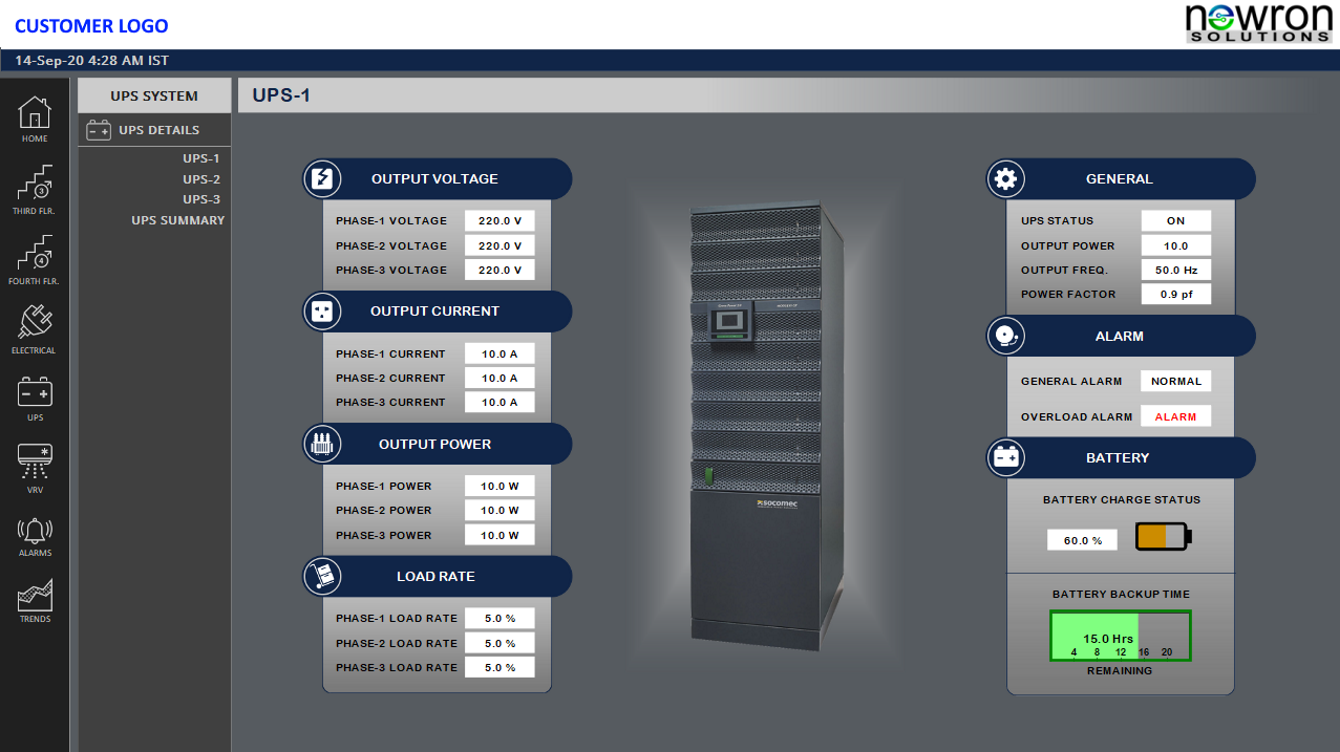

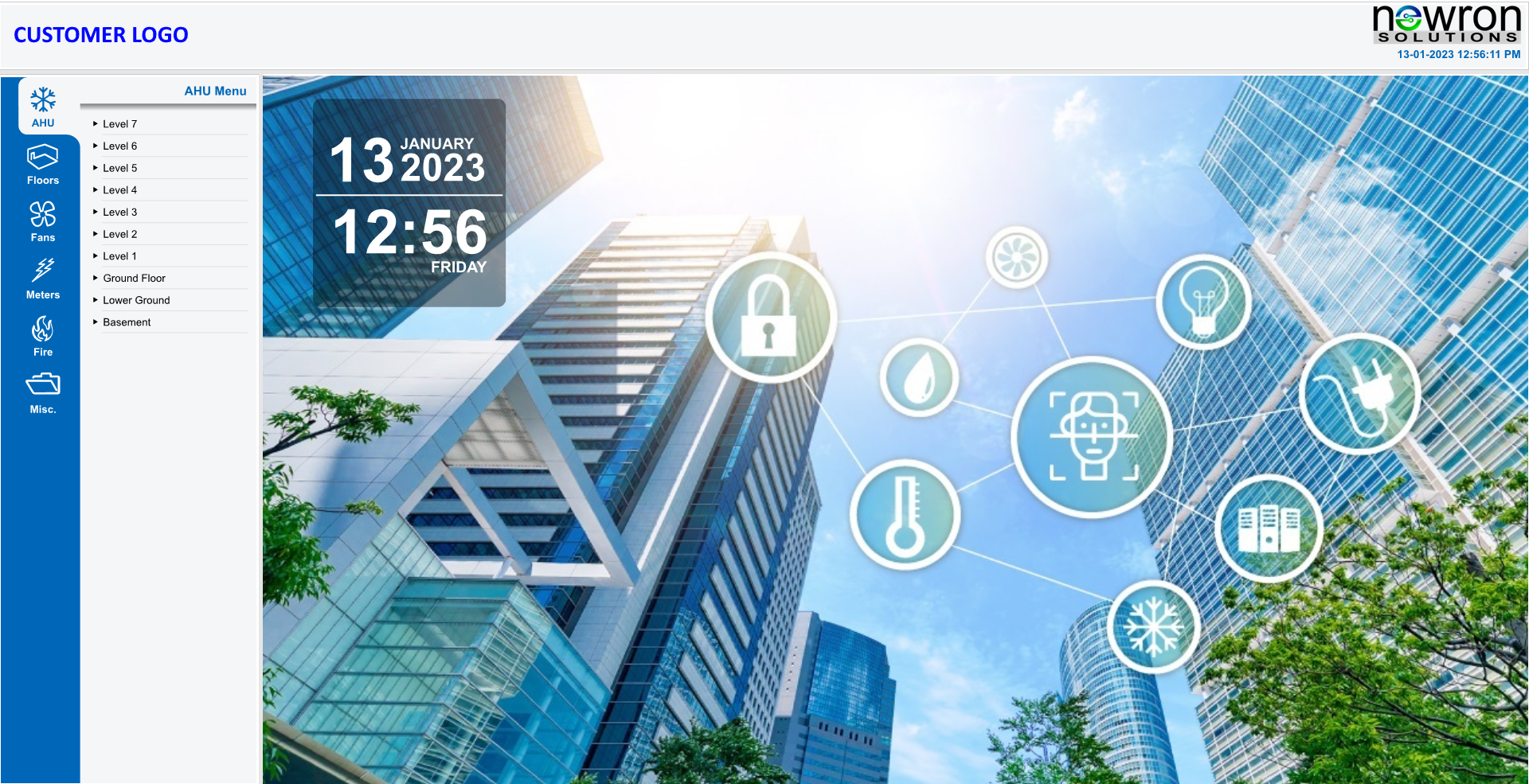

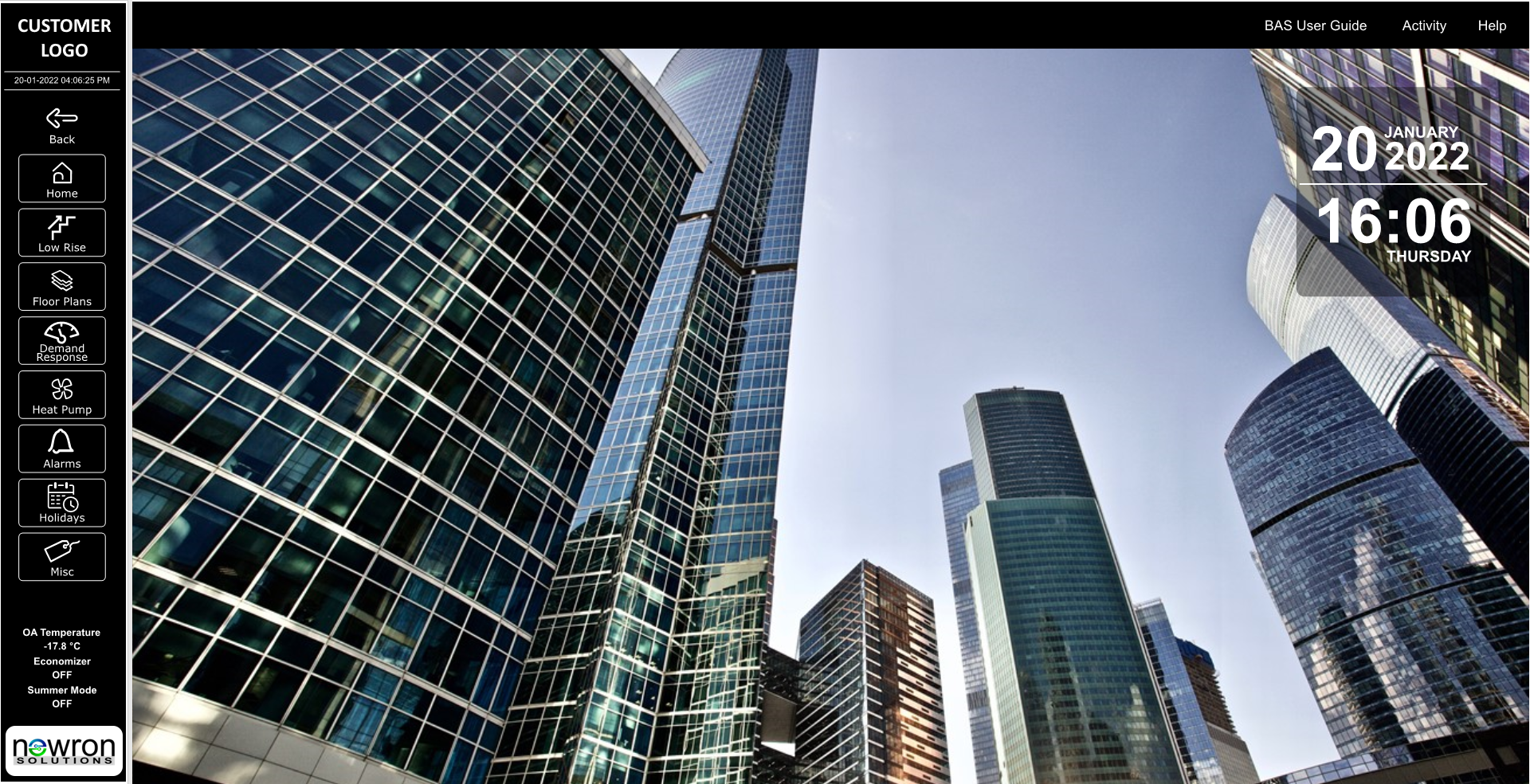

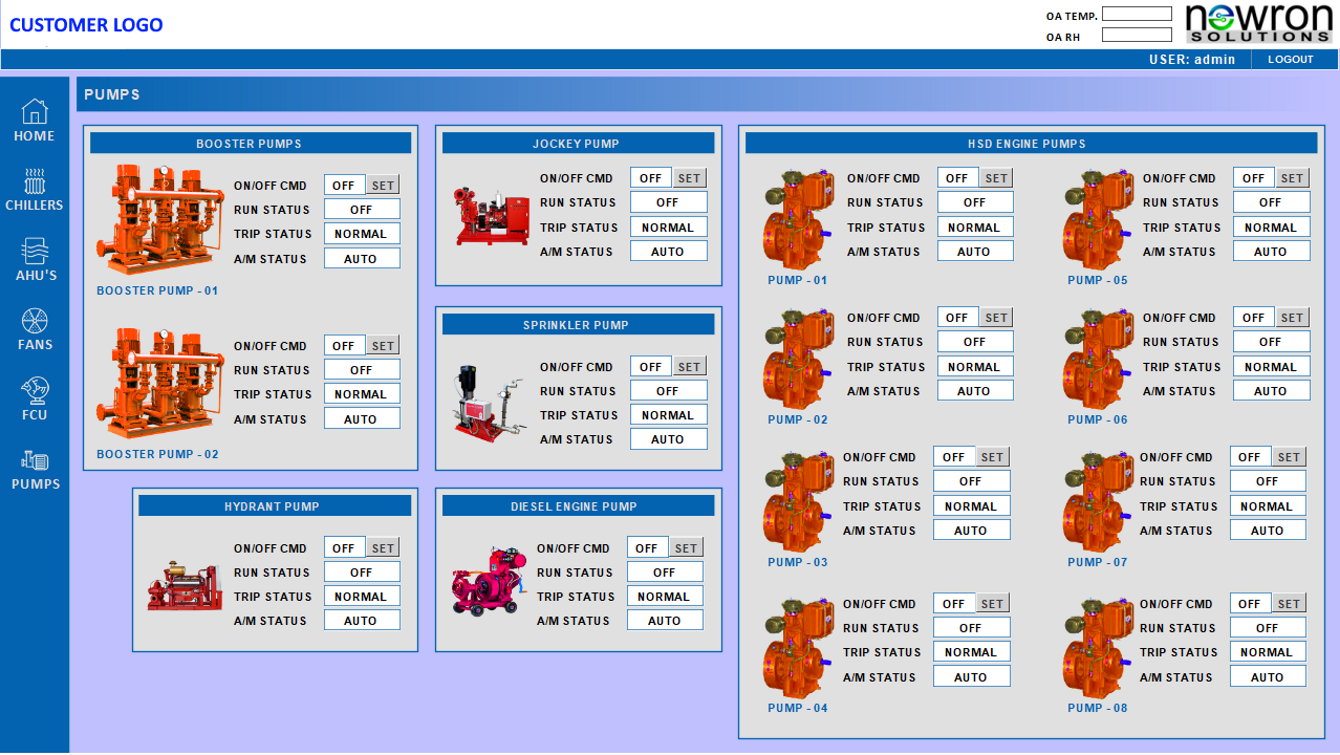

BMS Graphics - Schneider EcoStruxure / Tridium Niagara 4
Tailored graphical user interfaces developed for Schneider Electric EcoStruxure Building Operation (EBO) and Tridium Niagara 4 frameworks, utilizing compliant EBO TGML components and native Niagara 4 .px graphics. The graphics incorporate intuitive operational monitoring, precise equipment control, responsive navigation structures, high-contrast system views, and platform-standard symbology and color codes for clear and consistent visualization across supervisory workstations and web clients.
Schneider EcoStruxure Compliant EBO TGML components

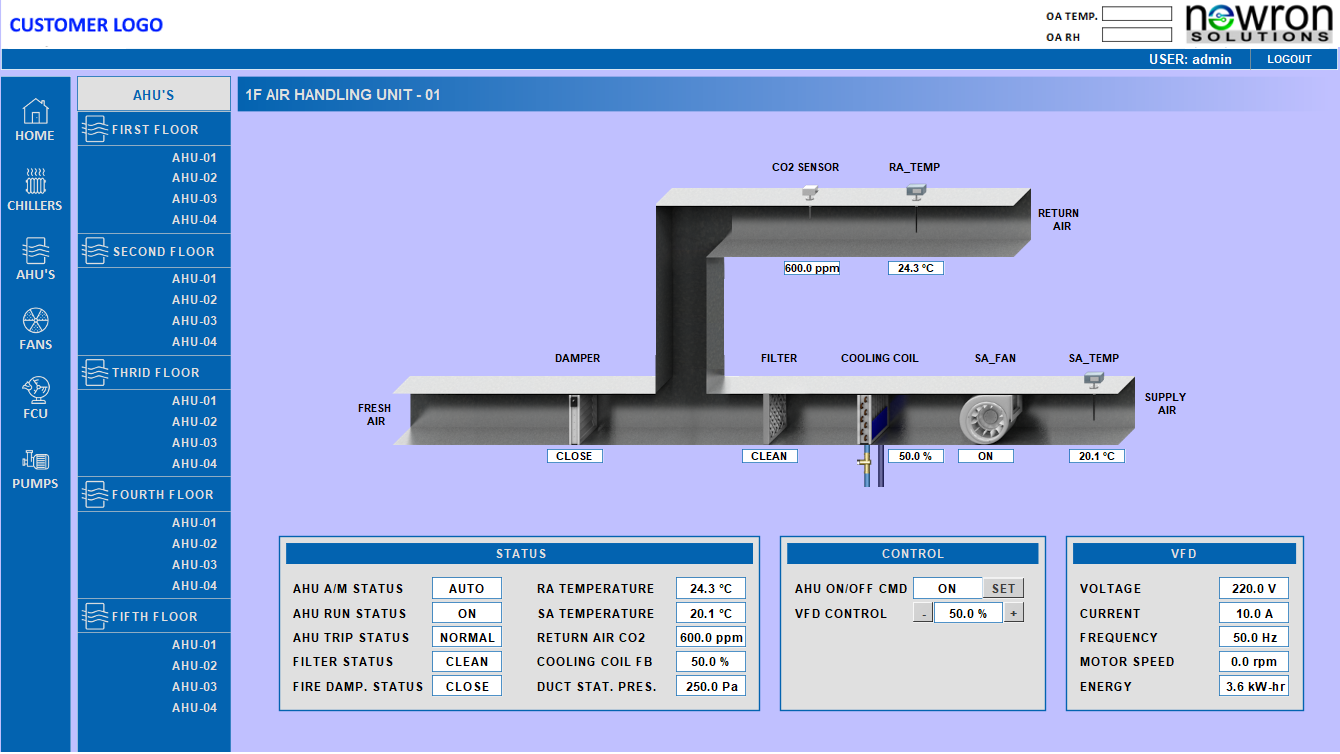

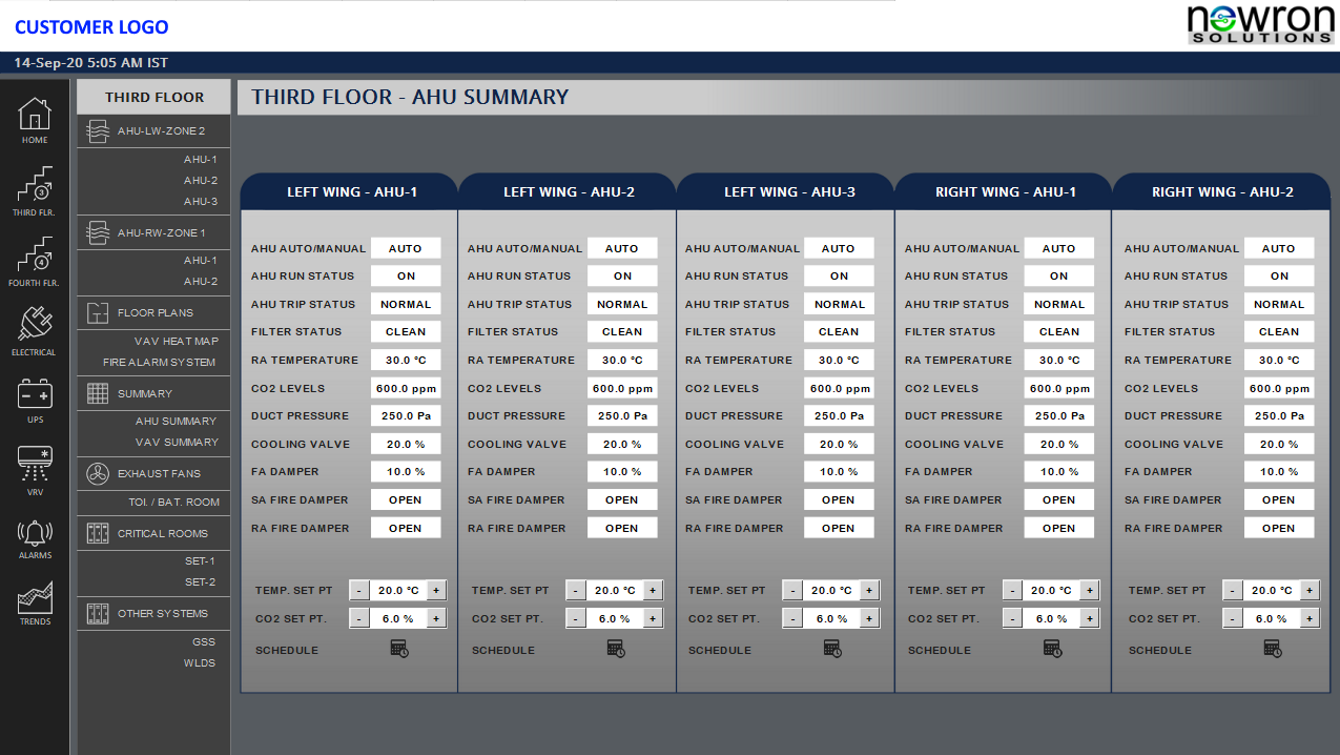

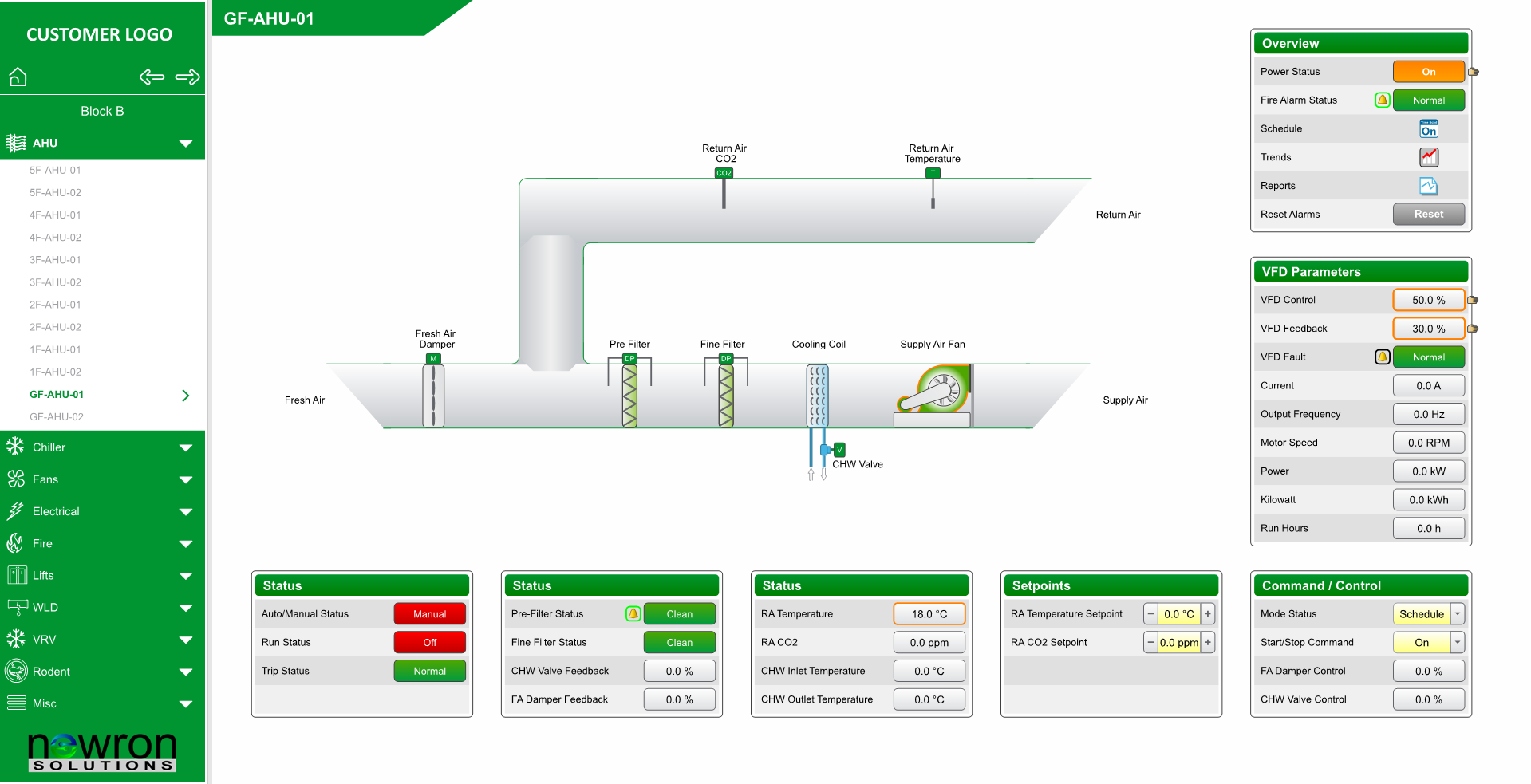

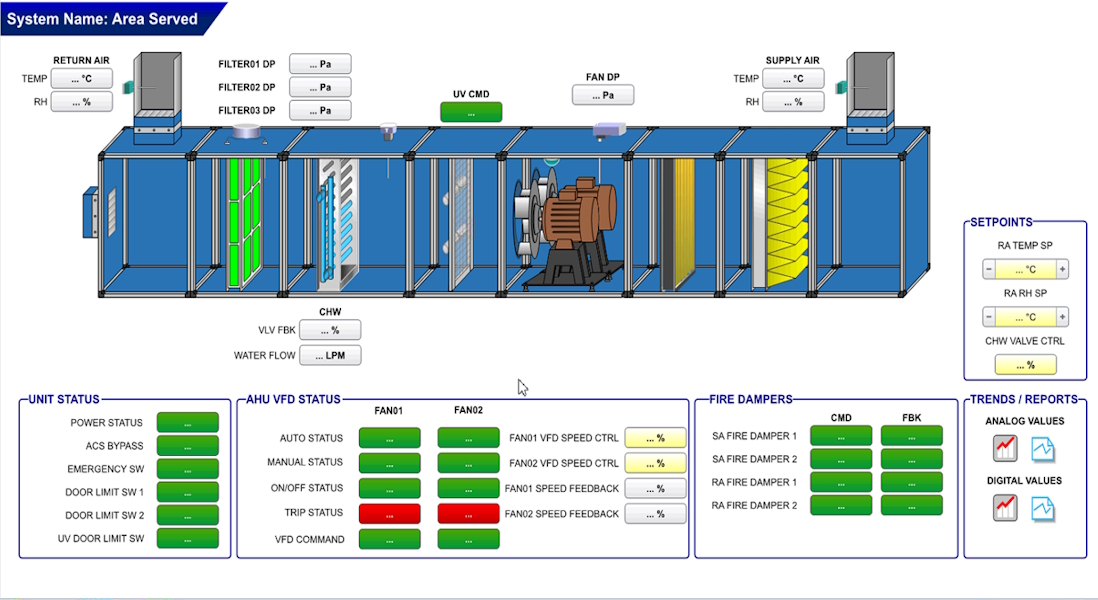

AHU
AHU Graphics
Air handling unit schematics with dynamic fan animations, damper positions, filter statuses, and temperature sensor readouts.

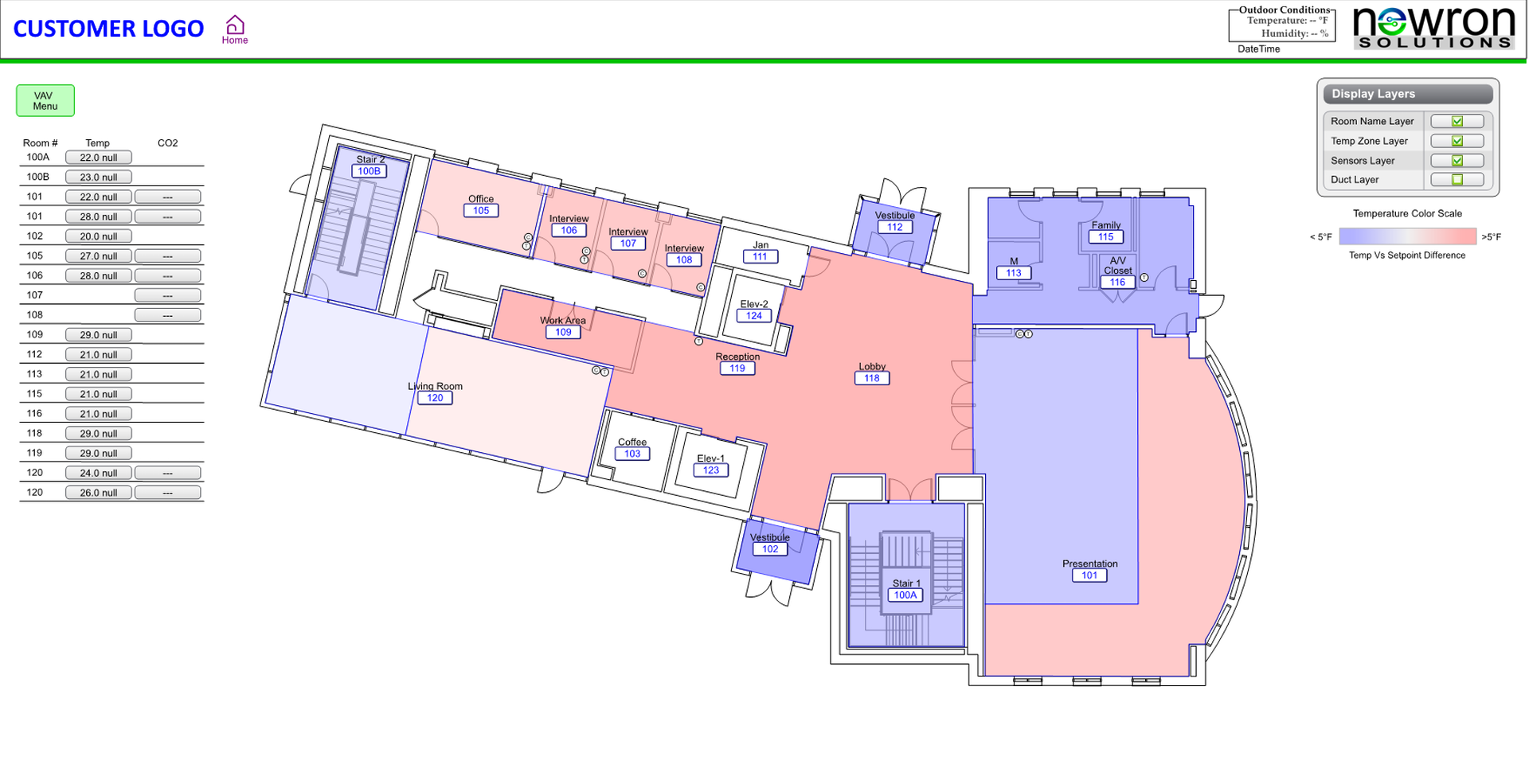

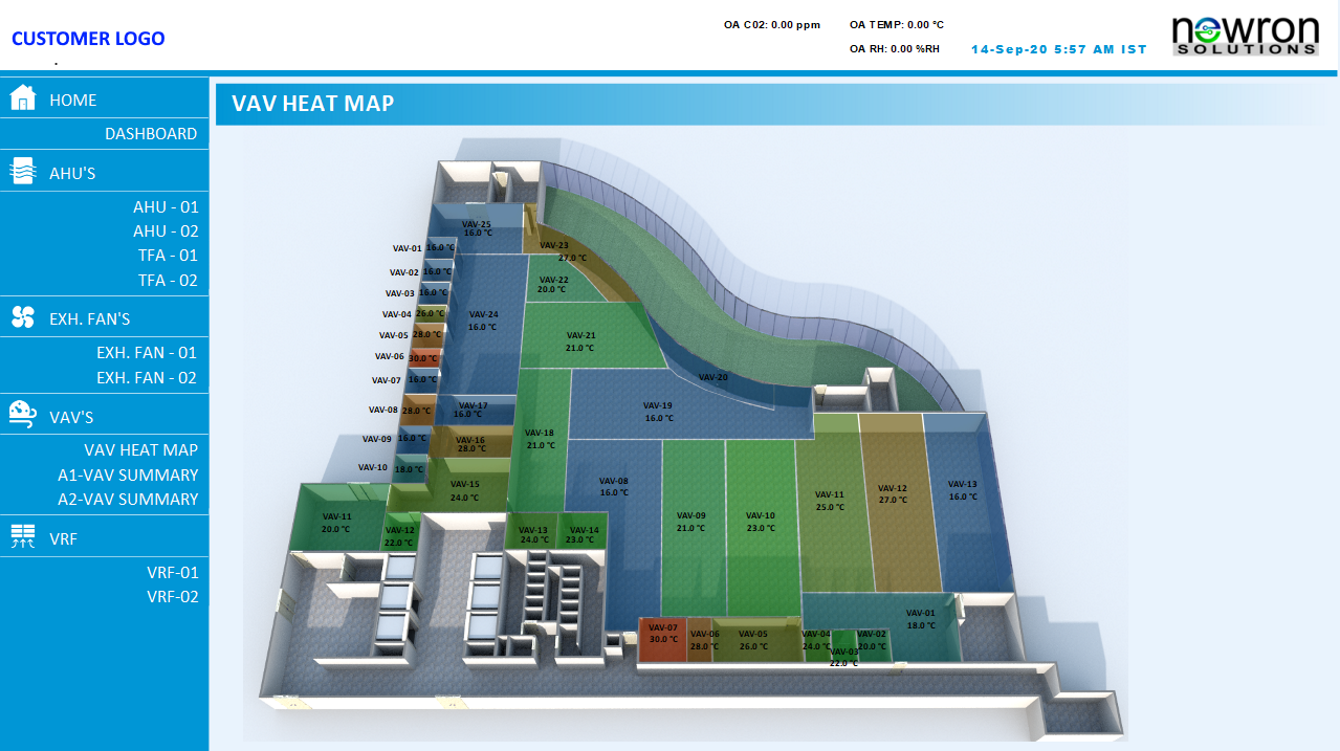

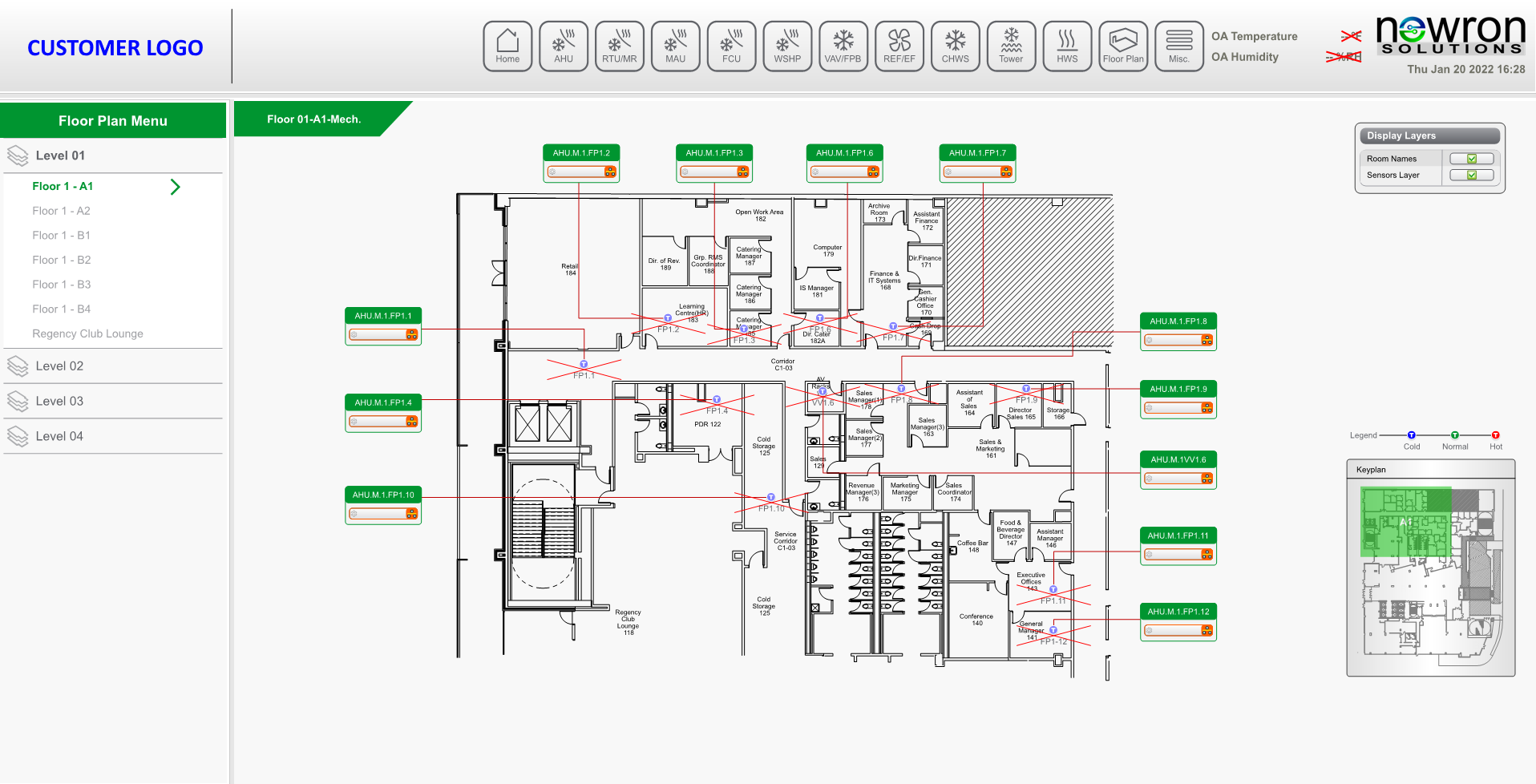

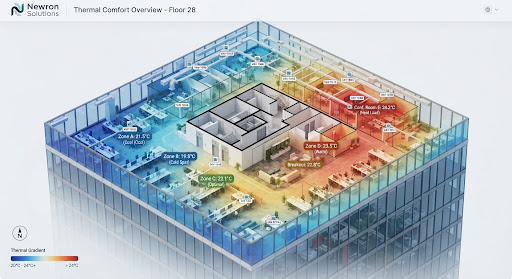

Thermal Zoning
Floor Plan Zoning
Clear architectural floor layouts with interactive VAV box zones, temperature thermal gradients, and space condition tags.

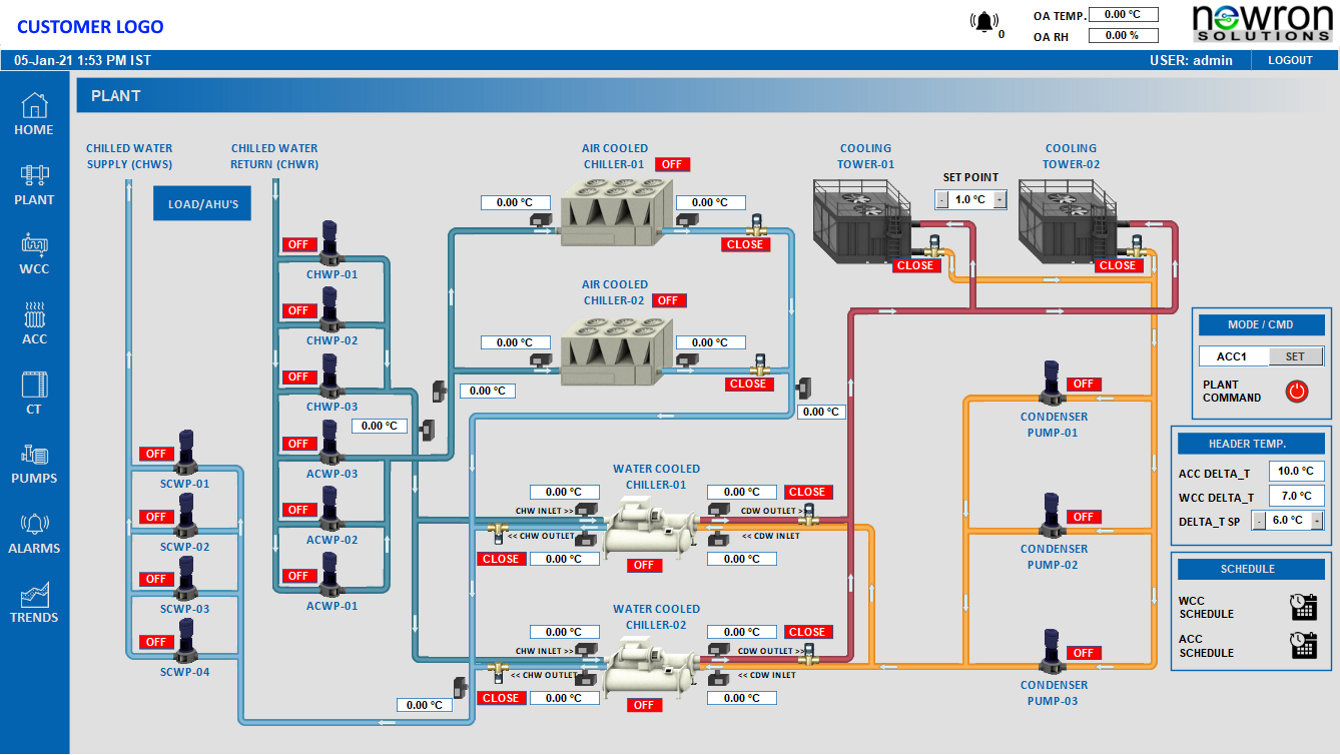

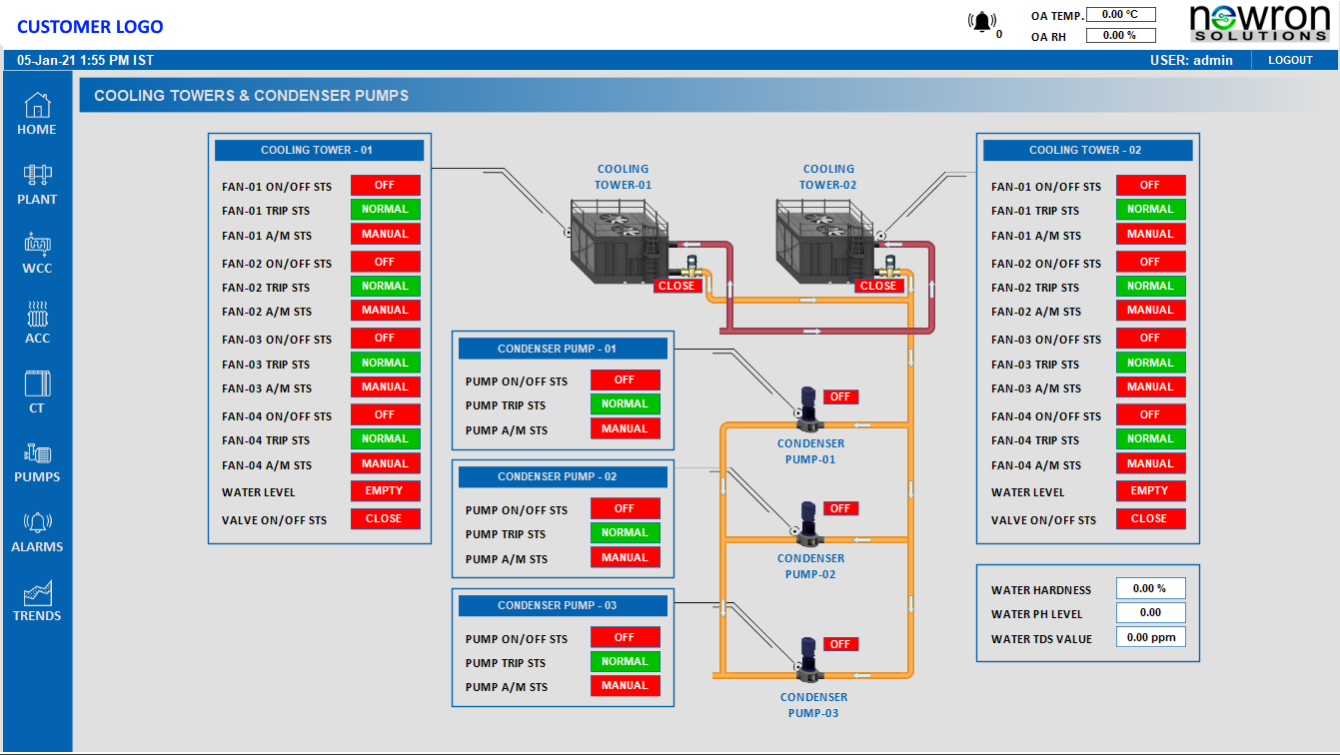

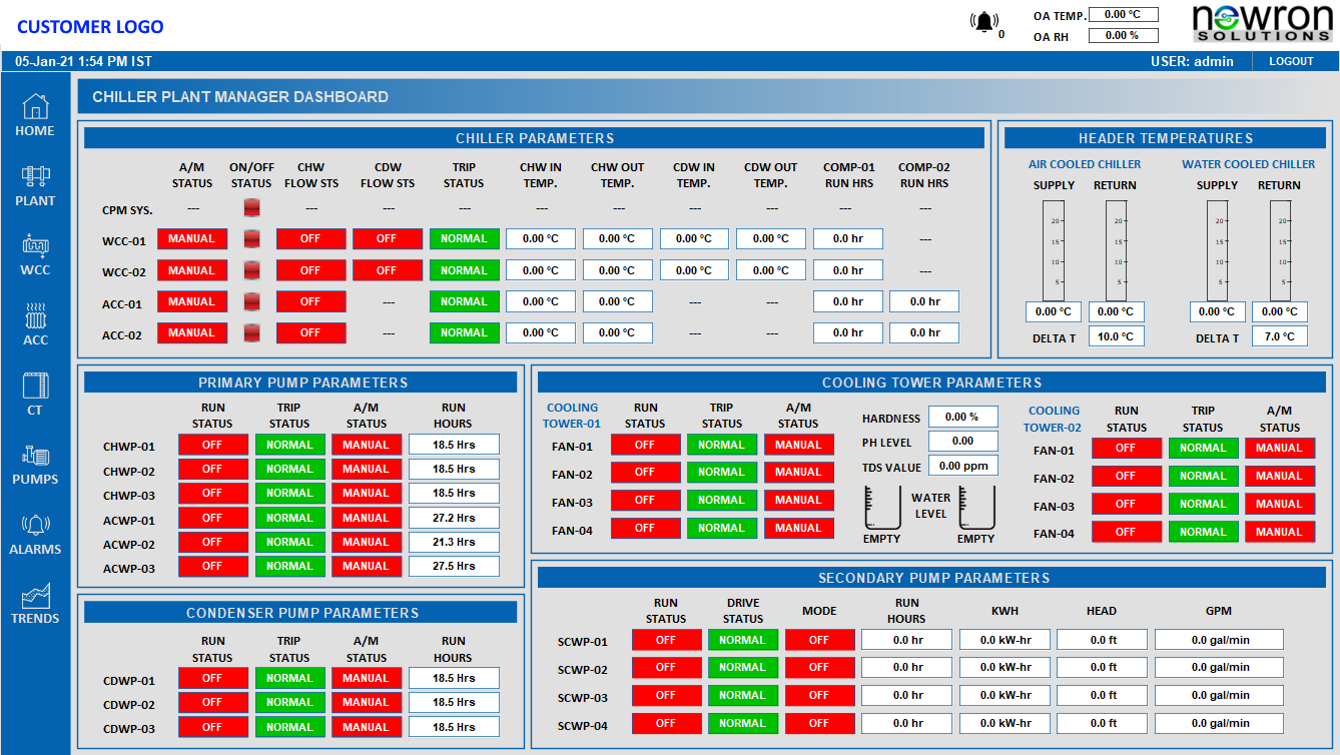

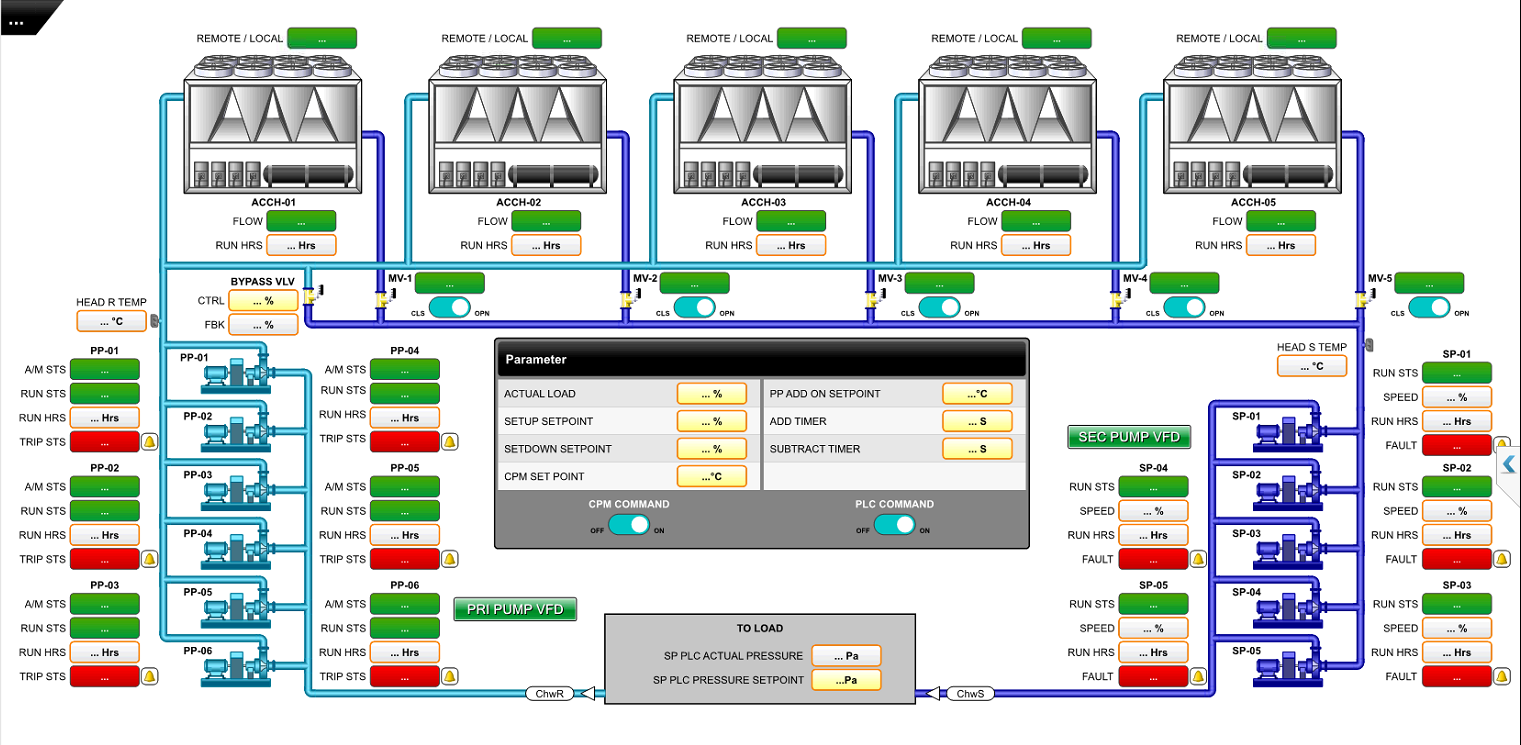

CPM Plant
Chiller Plant CPM

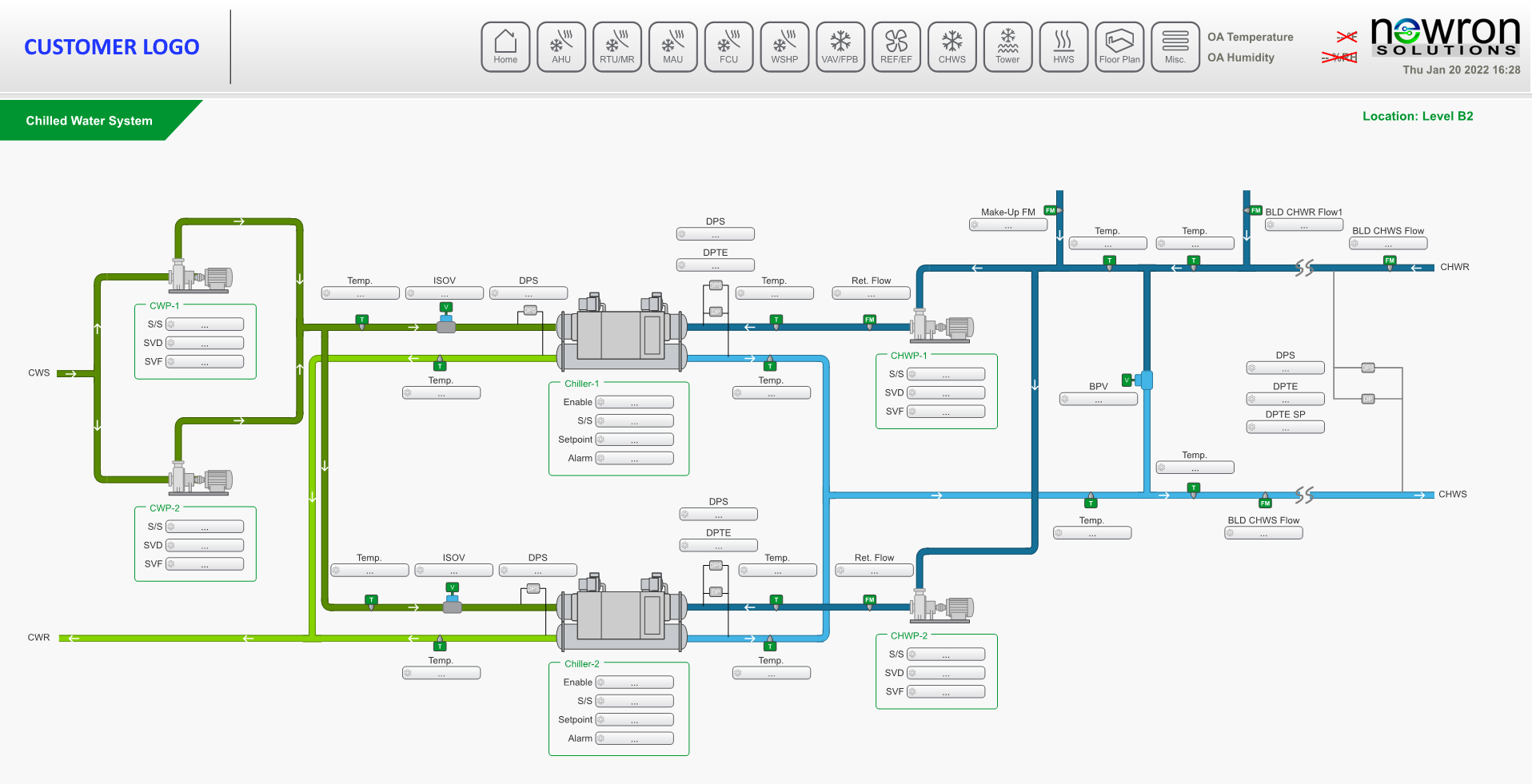

Central plant schematic showing chillers, primary/secondary pumps, cooling towers, header temperatures, and flow telemetry.
AHU
AHU Graphics
Air handling unit schematics with dynamic fan animations, damper positions, filter statuses, and temperature sensor readouts.
Thermal Zoning
Floor Plan Zoning
Clear architectural floor layouts with interactive VAV box zones, temperature thermal gradients, and space condition tags.
CPM Plant
Chiller Plant CPM
Central plant schematic showing chillers, primary/secondary pumps, cooling towers, header temperatures, and flow telemetry.
Building Management System (BMS)
Turnkey building automation solutions delivering integrated supervision for HVAC equipment, lighting systems, ventilation fans, water management, and critical alarms across commercial campuses, hospitals, data centers, and industrial facilities.
- check Open protocol BACnet and Modbus integration
- check Sequence of operations commissioning
- check Retrofits and legacy BMS migrations

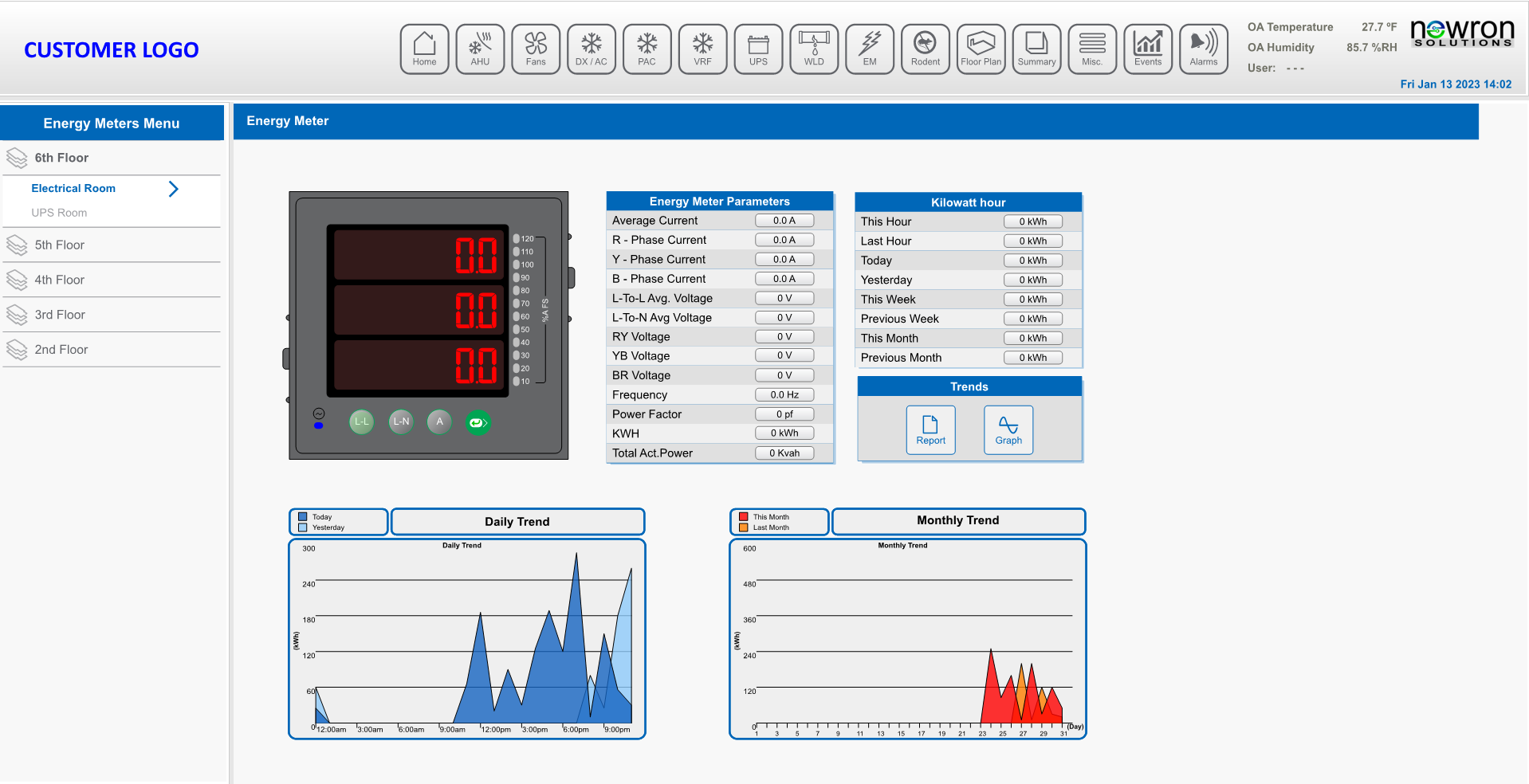

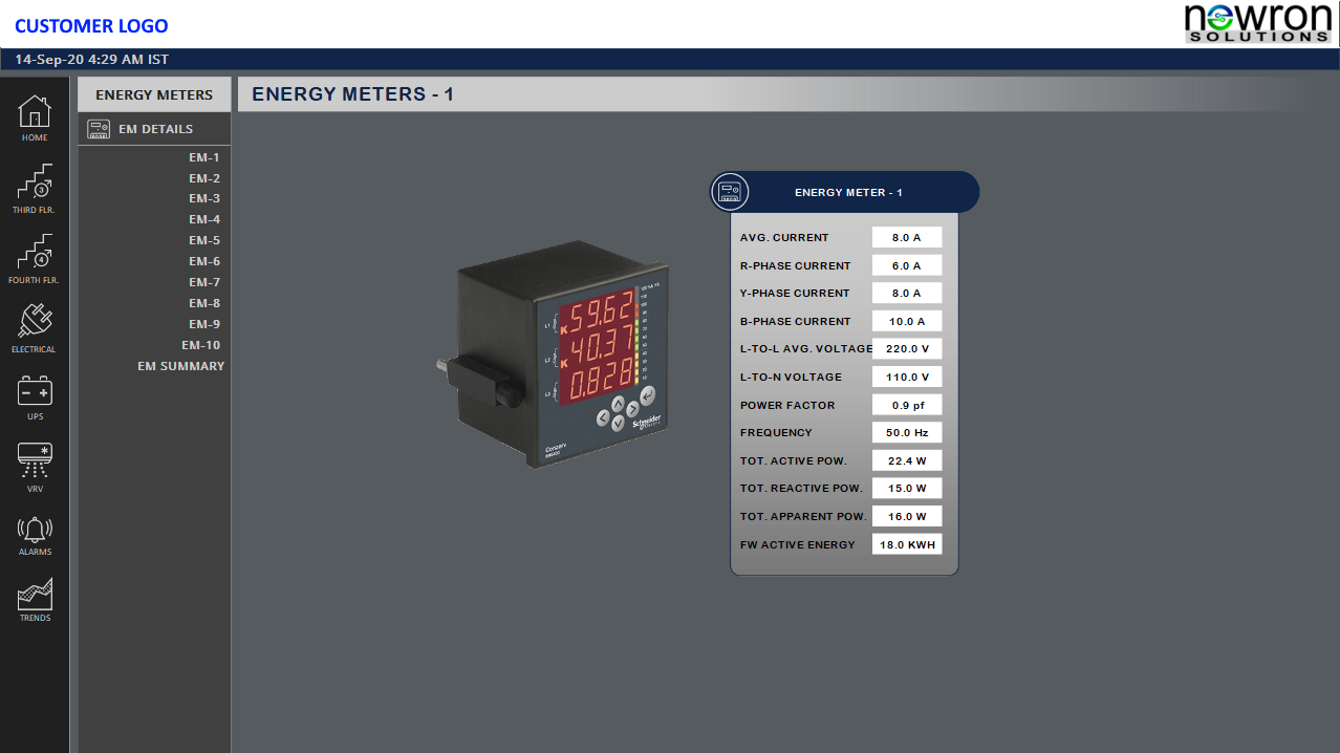

Energy Management System (EMS)
Comprehensive power monitoring and utility metering networks that capture consumption trends, calculate baseline performance, assist tenant utility billing, and identify thermal efficiency losses across large mechanical systems.
- check Sub-metering for tenant billing reconciliation

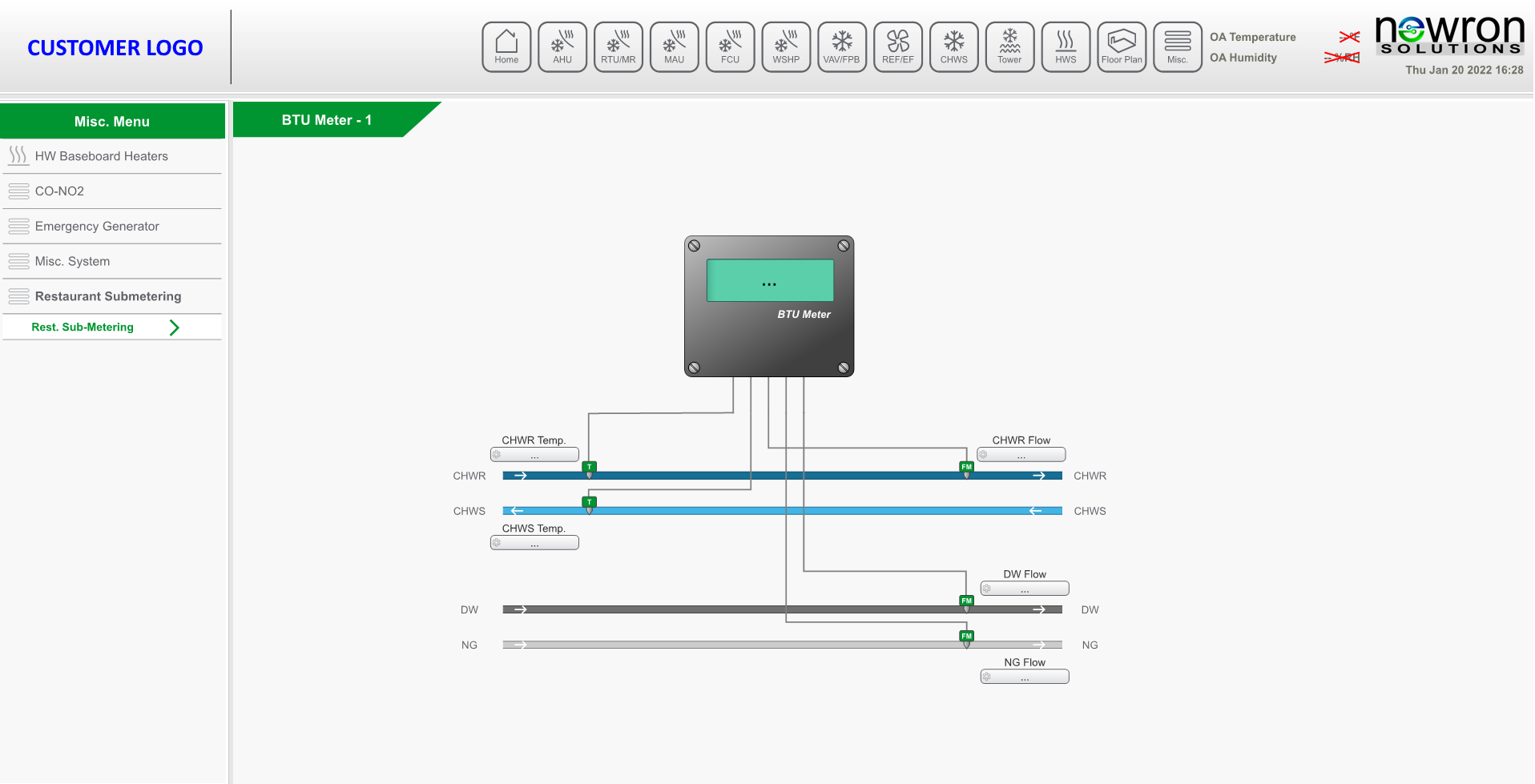

- check Real-time BTU thermal performance tracking
- check Peak demand monitoring and load profiling
